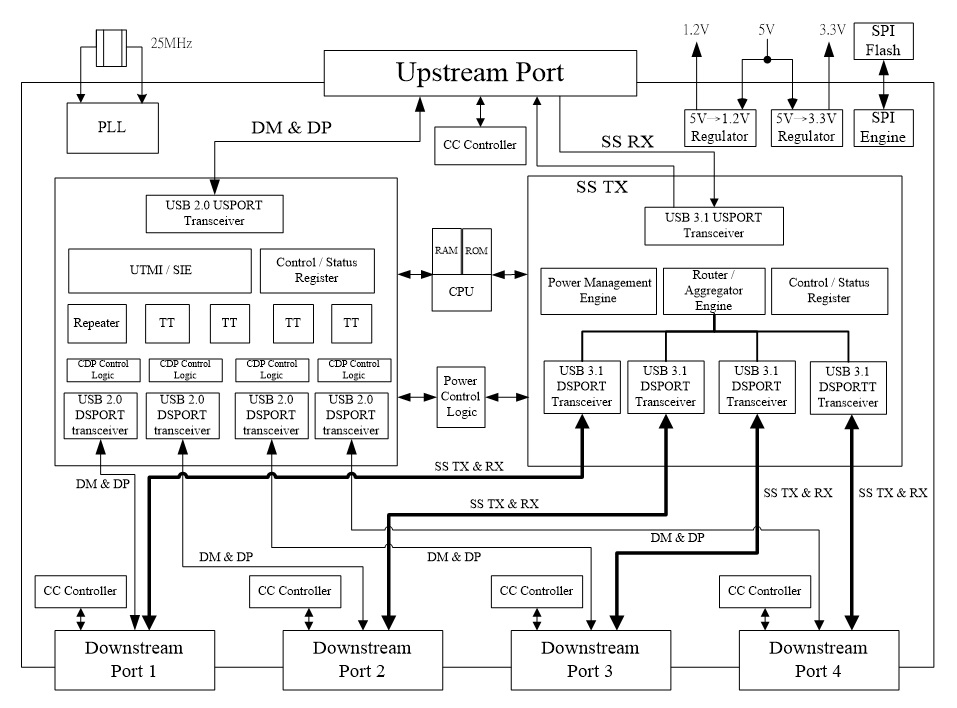

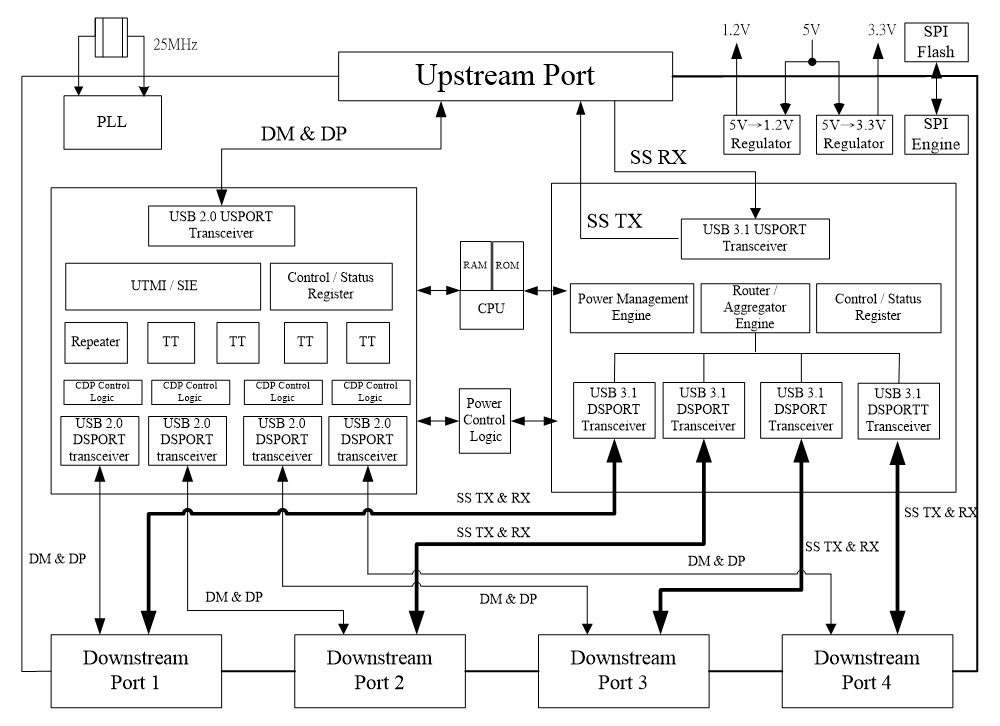

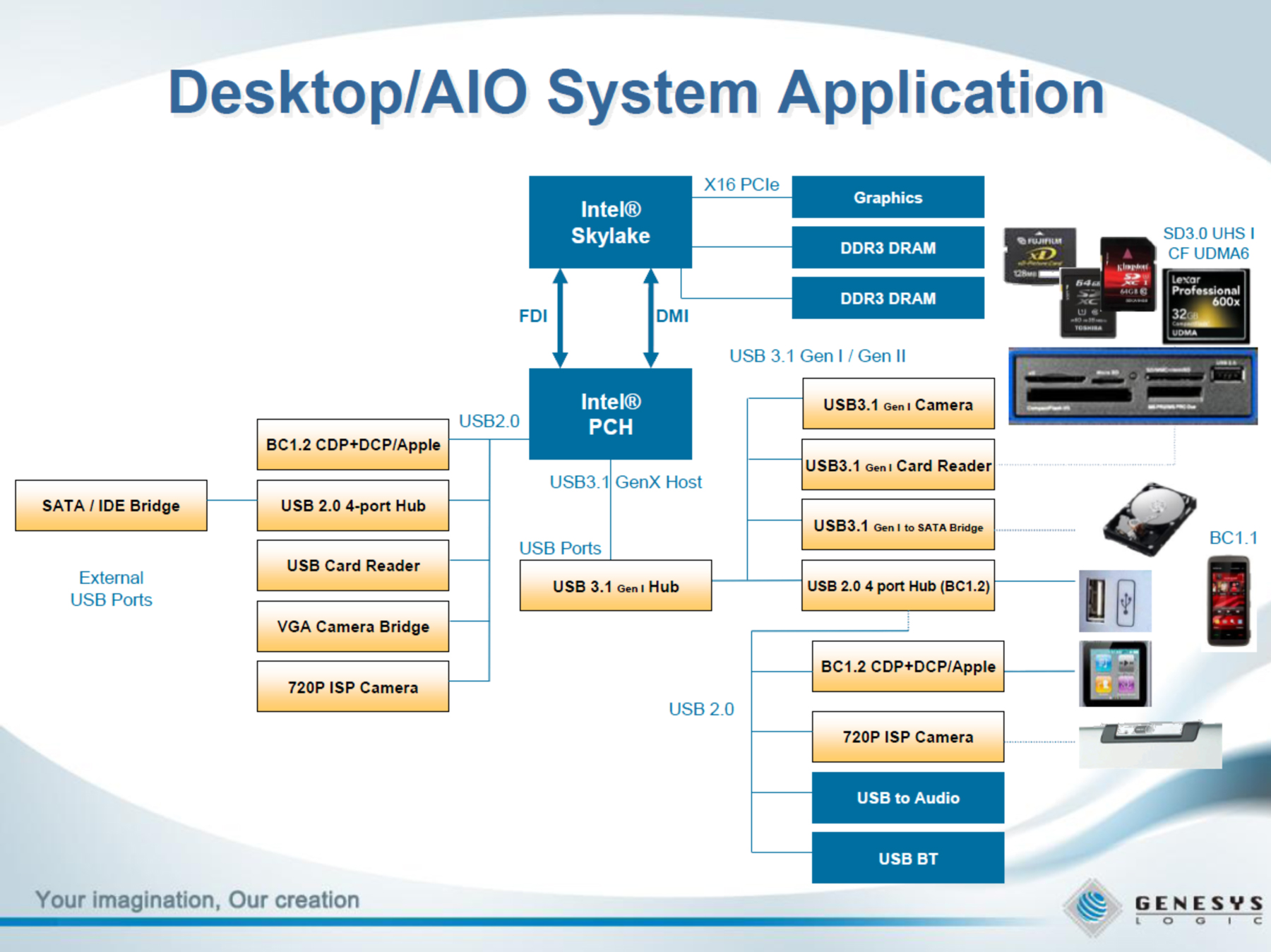

Genesys GL3523 is a 4-port, low-power, and configurable hub controller. It is compliant with the USB 3.1 specification. GL3523 integrates Genesys Logic self-developed USB 3.1 Gen 1 Super Speed transmitter/receiver physical layer (PHY) and USB 2.0 High-Speed PHY. It supports Super Speed, Hi-Speed, and Full-Speed USB connections and is fully backward compatible to all USB 2.0 and USB 1.1 hosts. GL3523 also implements multiple TT* (Note1) architecture providing dedicated TT* to each downstream (DS) port, which guarantees Full-Speed(FS) data passing bandwidth when multiple FS devices perform heavy loading operations. Furthermore, GL3523 has built-in 5V to 3.3V and 5V to 1.2V regulators, which saves customers’ BOM cost, and eases for PCB design.
GL3523 features the native fast-charging and complies with USB-IF battery charging specification rev1.2, it could fast-charge Apple, Samsung Galaxy devices, and any device complaint with BC1.2/1.1. It also allows portable devices to draw up to 1.5A from GL3523 charging downstream ports (CDP1) or dedicated charging port (DCP2). It can enable systems to fast charge handheld devices even during “Sleep” and “Power-off” modes.
With different part numbers, GL3523 also has USB Type-C function integrated (GL3523-S).
All available packages for GL3523 are listed as the following tables.
Compliant with USB 3.1 Gen 1 Specification
- Upstream port supports SuperSpeed (SS), HighSpeed (HS) and FullSpeed (FS) traffic
- Downstream ports support SS, HS, FS, and LowSpeed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
Native USB Type-C support in GL3523-S series
- Compliant with USB Type-C Cable and Connection Specification Revision 1.0
- Featuring USB Type-C functions
- Detecting flip-able/reversible plugging
- Discovering/configuring VBUS
- Supporting USB Type-C Current modes , including USB Default, 1.5A@5V, 3A@5V
- Configuring/Supporting VCONN Power and having VCONN over-current protection
Featuring fast-charging on all downstream ports and upstream port
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
- Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
- Supporting Apple 1A/2.1A/2.4A and Samsung Galaxy devices fast-charging
